185/65R13 in inches
Tire size 185/65R13, which is equivalent to 22.5×7.3R13, has a diameter of 22.5 inches (570.7mm), a section width of 7.3 inches (185mm), a wheel diameter of 13 inches (330mm), and is approved to be mounted on wheels with widths ranging from 5.0 to 6.5 inches.
| / | R |
| Feature | Metric | Inches |
|---|---|---|
| Tire Height | ||
| Section Width | ||
| Circumference | ||
| Sidewall Height | ||
| Revolutions | ||
| Rim Size |
Overall Diameter
The 185/65R13 tire size is characterized by an overall diameter of 22.5 inches, measured from one edge to the other. This measurement reflects the tire’s complete height when filled to the recommended pressure.

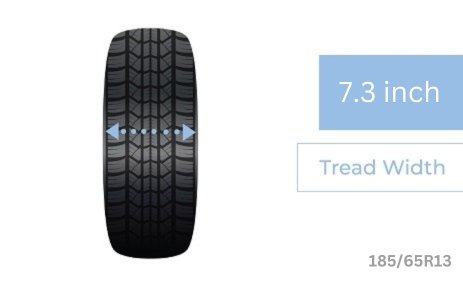

Tread Width
The 185/65R13 tire has a tread or section width of 7.3 inches. This dimension represents the distance between one sidewall to the other, signifying the contact area with the road surface.
Tire Circumference
The 185/65R13 tire has a circumference of 70.6 inches, representing the linear distance traveled in a single revolution. This measurement is crucial for determining speed, distance, and revolutions per minute (RPM).
Sidewall Height
The 185/65R13 tires feature a sidewall height of 4.7 inches. This measurement represents the vertical distance from the outer edge of the rim to the outer edge of the tire’s tread.
It plays a crucial role in defining the tire’s profile, impacting both ride comfort and handling attributes.
Revolutions Per Mile
The 185/65R13 tire size completes around 897.6 revolutions per mile. This metric signifies the full rotations the tire makes while covering one mile.
It’s important to grasp this value, as it plays a significant role in odometer readings, speed calculations, and aspects of fuel efficiency.

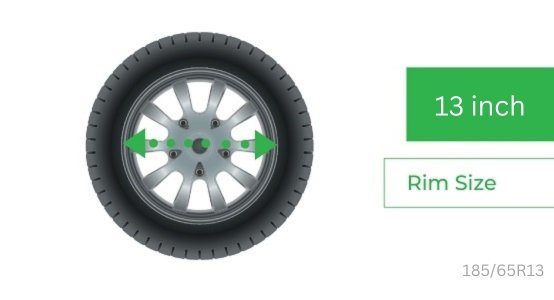

Wheel Size
The appropriate rim size for 185/65R13 tires is 13 inches in diameter. This detail becomes crucial when contemplating wheel replacement or upgrade, as it guarantees proper fitting of the tire onto the rim.
Construction Type
Finally, the 185/65R13 tires utilize a radial construction. In radial tire design, the internal layers or “plies” are oriented perpendicular to the direction of travel.
This configuration enhances heat dissipation and elevates overall performance, surpassing alternative construction methods.
What Does 185/65R13 Mean?
The term “185/65R13” refers to the size and specifications of a tire. Here’s a breakdown of what each part of the designation means:
- 185: This number represents the width of the tire in millimeters. In this case, the tire is 185 millimeters wide from sidewall to sidewall.
- 65: This number indicates the aspect ratio, which is the ratio of the tire’s sidewall height to its width. In this example, the aspect ratio is 65, meaning the sidewall height is 65% of the tire’s width.
- R: This letter stands for “radial,” which is the most common type of tire construction. Radial tires have ply cords that run perpendicular to the direction of travel.
- 13: This number represents the diameter of the wheel, in inches, on which the tire is designed to fit.
So, in summary, a tire with the designation 185/65R13 is a radial tire that is 185 millimeters wide, with a sidewall height that is 65% of the width, and it is designed to fit a 13-inch wheel.
What Is 185/65R13 In Inches?
The tire size 185/65R13 can be expressed in inches as approximately 7.3 inches wide, 4.7 inches tall in sidewall, and designed to fit a 13-inch wheel rim. The 185/65R13 also has a circumference of 70.6 inches and It completes 897.6 revolutions per mile.
185/65R13 Equivalent
The tire size 185/65R13 is equivalent with a size of 22.5x7.3R13 in inches. This correlation is pivotal for precision in tire selection and optimal vehicle performance.
How Tall Is A 185/65R13 Tire?
The height of a 185/65R13 tire, expressed through its diameter, is approximately 22.5 inches (570.7 mm). In short, A 185/65R13 tire size is 22.5 inches (570.7 mm) tall.
The height of the tire is subject to slight variations, determined by both the brand and model of the tire, in addition to the amount of air pressure it holds.
How Wide Is A 185/65R13 Tire?
The width of a 185/65R13 tire is 7.3 inches (185 millimeters). The first number in the tire size (185) represents the tire’s nominal width in millimeters from sidewall to sidewall when mounted on a specified width wheel. Therefore, the 185/65R13 tire size is 7.3 inches (185 mm) wide.
What Size Rim For 185/65R13?
The size of the rim for a 185/65R13 tire is 13 inches in wheel diameter. In the tire size 185/65R13, the number “13” at the end indicates the diameter of the wheel (rim) in inches that the tire is designed to fit. The rim width range for this tire is typically 5.0 to 6.5 inches.
