Tire Size 245/60r17 in inches
The tire size 245/60R17 is equivalent to 28.6×9.6R17, has a diameter of 28.6 inches (726 mm), a section width of 9.6 inches (245 mm), a wheel diameter of 17 inches (432 mm), and is approved to be mounted on 7.0-8.5 inches (178-216 mm) wide wheels.
245/60r17 in inches
| Feature | Inches | Metric |
|---|---|---|
| Tire Diameter | 28.6 | 725.8 |
| Section Width | 9.6 | 245 |
| Rim Height | 17 | 432 |
| Sidewall Height | 5.8 | 147 |
| Circumference | 89.8 | 2280 |
| Revolutions | 439 per km | 706 per mile |
| Rim Width Range | 7.0-8.5 | 177.8 – 215.9 |
How Tall Is A 245/60R17 Tire?
The tire height of the 245/60R17 tire size is 28.6 inches (726 mm). This measurement, also known as the tire’s overall diameter, is a critical element in understanding the size of the tire.
It’s determined by doubling the sidewall height and adding the diameter of the wheel. Its significance lies in influencing ride comfort, fuel efficiency, and overall vehicle performance.
What Is the 245/60R17 Width In Inches?
The tread width of the 245/60R17 tire size is 9.6 inches (245 mm). This is also referred to as the section width, indicating the linear distance between the widest points of the outer and inner sidewalls of the tire. The tread width impacts the contact area between the tire and the road, affecting grip, traction, and handling characteristics.
What Is the 245/60R17 Sidewall Height?
The 245/60R17 tire’s sidewall height is 5.8 inches (147 mm). This figure is determined by multiplying the aspect ratio by the section width.
The aspect ratio, in this case, is 60, which represents the height as a percentage of the section width. The sidewall height significantly affects the ride comfort and handling of the vehicle.
What Is the 245/60R17 Tire Circumference?
The circumference of the 245/60R17 tire size is 89.8 inches (2280 mm). This value is the total distance the tire will cover in one complete revolution. The tire’s circumference affects the speedometer reading, gear ratios, and overall vehicle performance.

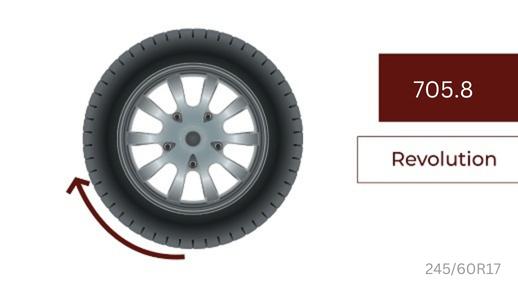

What Is the 245/60R17 Revolutions Per Mile?
For the 245/60R17 tire size, there are approximately 706 revolutions per mile (or 439 revolutions per kilometer). This measurement helps to estimate the tire’s wear rate, fuel efficiency, and speed calculations.
What Is the 245/60R17 Rims Size?
The 245/60R17 tire size rim diameter is 17 inches (432 mm). The tire is designed to fit rims with widths between 7.0-8.5 inches (177.8 – 215.9 mm). Ensuring the correct fitment of the tire on the rim is crucial for vehicle safety, ride comfort, and handling.
Fitment Guide
This table will guide you on which vehicle models the 245/60R17 tire can perfectly fit. Ensure you always check with your vehicle’s manufacturer recommendations for tire sizes and their approved variations.
| Brand Name | Model |
|---|---|
| CADILLAC | Fleetwood (1993 – 1996) |
| DAEWOO | Musso (1999 – 2002) |
| DODGE | Grand Caravan (2011 – 2020) |
| FODAY | Explorer III (2011 – 2014) |
| GMC | Savana 1500 (1996 – 2002) |
| HAIMA | S7 (2015 – 2019) |
| HONDA | CR-V (2007 – 2018) |
| HYUNDAI | Santa Fe (2015 – 2018) |
| MERCURY | Mariner (2005 – 2011) |
| RAM | C/V (2013 – 2018) |
| SSANGYONG | Musso (1993 – 2006) |
| SUBARU | Outback (2014 – 2023) |
Replacement Tire Size
Replacement tires have to be within 3% of the total diameter of the original tires. This ensures the vehicle’s systems, like the speedometer, traction control, and ABS, function correctly.
| Tire Size | Overall Diameter | Difference |
|---|---|---|
| 305/45R17 | 27.8″ (706 mm) | -2.8% |
| 345/40R17 | 27.9″ (708 mm) | -2.5% |
| 275/50R17 | 27.9″ (708 mm) | -2.5% |
| 255/55R17 | 28.0″ (712 mm) | -1.9% |
| 155/90R17 | 28.0″ (712 mm) | -1.9% |
| 215/65R17 | 28.0″ (712 mm) | -1.9% |
| 235/60R17 | 28.1″ (714 mm) | -1.7% |
| 315/45R17 | 28.2″ (716 mm) | -1.4% |
| 265/55R17 | 28.5″ (724 mm) | -0.3% |
| 225/65R17 | 28.5″ (724 mm) | -0.3% |
| 165/90R17 | 28.7″ (730 mm) | 0.6% |
| 275/55R17 | 28.9″ (734 mm) | 1.1% |
| 215/70R17 | 28.9″ (734 mm) | 1.1% |
| 255/60R17 | 29.1″ (738 mm) | 1.7% |
| 235/65R17 | 29.1″ (738 mm) | 1.7% |
Our Observation
In our experience, the 245/60R17 tire size offers a balanced combination of comfort and performance. Its wider tread width provides better road grip and stability, while the taller sidewall ensures a comfortable ride.
It fits perfectly on mid-size SUVs, offering excellent traction and handling capabilities. Always ensure proper inflation to guarantee optimal performance and longevity of the tire.
