225/75R16 in inches

Tire size 225/75R16 is equivalent to 29.3×8.9R16 inches, has a diameter of 29.3 inches, a section width of 8.9 inches, a wheel diameter of 16 inches, and is approved to be mounted on 6.0-7.5 inches wide wheels.

/ R
Feature Metric Inches
Tire Height
Section Width
Circumference
Sidewall Height
Revolutions
Rim Size
Tire 1 Front View
Width
Dia.
Tire 1 Side View
Tire 1 Wheel
circumference 1
Circ.
Rim
Wall
Revs/Mile

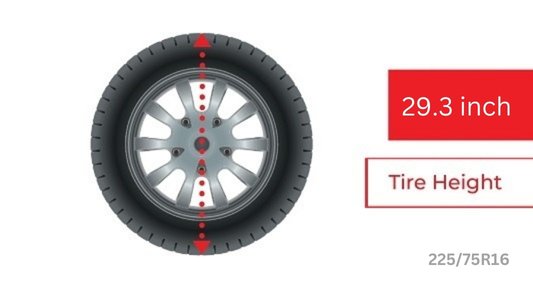

Overall Diameter

The 225/75R16 tire size is characterized by an overall diameter of 29.3 inches, measured from one edge to the other. This measurement reflects the tire’s complete height when filled to the recommended pressure.

Tread Width

The 225/75R16 tire has a tread or section width of 8.9 inches. This dimension represents the distance between one sidewall to the other, signifying the contact area with the road surface.

Tire Circumference

The 225/75R16 tire has a circumference of 92 inches, representing the linear distance traveled in a single revolution. This measurement is crucial for determining speed, distance, and revolutions per minute (RPM).

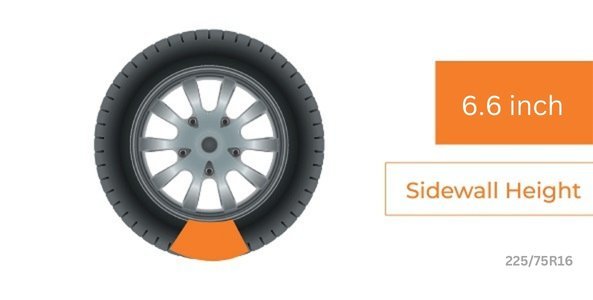

Sidewall Height

The 225/75R16 tires feature a sidewall height of 6.6 inches. This measurement represents the vertical distance from the outer edge of the rim to the outer edge of the tire’s tread.

It plays a crucial role in defining the tire’s profile, impacting both ride comfort and handling attributes.

Revolutions Per Mile

The 225/75R16 tire size completes around 688.6 revolutions per mile. This metric signifies the full rotations the tire makes while covering one mile.

It’s important to grasp this value, as it plays a significant role in odometer readings, speed calculations, and aspects of fuel efficiency.

Wheel Size

The appropriate rim size for 225/75R16 tires is 16 inches in diameter. This detail becomes crucial when contemplating wheel replacement or upgrade, as it guarantees proper fitting of the tire onto the rim.

Construction Type


Finally, the 225/75R16 tires utilize a radial construction. In radial tire design, the internal layers or “plies” are oriented perpendicular to the direction of travel.

This configuration enhances heat dissipation and elevates overall performance, surpassing alternative construction methods.

What Does 225/75R16 Mean?

The term “225/75R16” refers to the size and specifications of a tire. Here’s a breakdown of what each part of the designation means:

  • 225: This number represents the width of the tire in millimeters. In this case, the tire is 225 millimeters wide from sidewall to sidewall.
  • 75: This number indicates the aspect ratio, which is the ratio of the tire’s sidewall height to its width. In this example, the aspect ratio is 75, meaning the sidewall height is 75% of the tire’s width.
  • R: This letter stands for “radial,” which is the most common type of tire construction. Radial tires have ply cords that run perpendicular to the direction of travel.
  • 16: This number represents the diameter of the wheel, in inches, on which the tire is designed to fit.

So, in summary, a tire with the designation 225/75R16 is a radial tire that is 225 millimeters wide, with a sidewall height that is 75% of the width, and it is designed to fit a 16-inch wheel.

225/75R16 in inches

What Is 225/75R16 In Inches?

The tire size 225/75R16 can be expressed in inches as approximately 8.9 inches wide, 6.6 inches tall in sidewall, and designed to fit a 16-inch wheel rim. The 225/75R16 also has a circumference of 92 inches and It completes 688.6 revolutions per mile.

225/75R16 Equivalent

The tire size 225/75R16 is equivalent with a size of 29.3x8.9R16 in inches. This correlation is pivotal for precision in tire selection and optimal vehicle performance.

How Tall Is A 225/75R16 Tire?

The height of a 225/75R16 tire, expressed through its diameter, is approximately 29.3 inches (743.9 mm). In short, A 225/75R16 tire size is 29.3 inches (743.9 mm) tall.

The height of the tire is subject to slight variations, determined by both the brand and model of the tire, in addition to the amount of air pressure it holds.

How Wide Is A 225/75R16 Tire?

The width of a 225/75R16 tire is 8.9 inches (225 millimeters). The first number in the tire size (225) represents the tire’s nominal width in millimeters from sidewall to sidewall when mounted on a specified width wheel. Therefore, the 225/75R16 tire size is 8.9 inches (225 mm) wide.

What Size Rim For 225/75R16?

The size of the rim for a 225/75R16 tire is 16 inches in wheel diameter. In the tire size 225/75R16, the number “16” at the end indicates the diameter of the wheel (rim) in inches that the tire is designed to fit. The rim width range for this tire is typically 6.0-7.5″.

Replacement Tire Sizes

New tires must match the original tire’s overall diameter within a 3% range. Take a moment to inspect the options listed below before selecting a suitable tire size.

Tire Size Overall Diameter Difference
225/70R16 28.4″ -3.00%
265/60R16 28.5″ -2.70%
215/75R16 28.7″ -2.20%
205/80R16 28.9″ -1.30%
275/60R16 29.0″ -1.10%
235/70R16 29.0″ -1.10%
255/65R16 29.1″ -0.80%
285/60R16 29.4″ 0.50%
215/80R16 29.5″ 0.80%
245/70R16 29.5″ 0.80%
265/65R16 29.5″ 0.80%
315/55R16 29.6″ 1.10%
235/75R16 29.8″ 1.90%
255/70R16 30.1″ 2.70%
275/65R16 30.1″ 3.00%
