Tire Size 225/70r17 in inches

The tire size 225/70R17 is equivalent to 29.4×8.9R17, has a diameter of 29.4 inches (746.8 millimeters), a section width of 8.9 inches (225 millimeters), a wheel diameter of 17 inches (432 millimeters), and is approved to be mounted on 6.0-7.5 inches (152.4 – 190.5 millimeters) wide wheels. This size specification fits into a wide range of vehicles and delivers a balanced mix of performance and comfort.

225/70r17 in inches

Feature Inches Metric (mm)
Tire Diameter 29.4 746.8
Section Width 8.9 225
Rim Height 17 432
Sidewall Height 6.2 157.5
Circumference 92.4 2346.1
Revolutions 426 per km 686 per mile
Rim Width Range 6.0-7.5 152.4 – 190.5

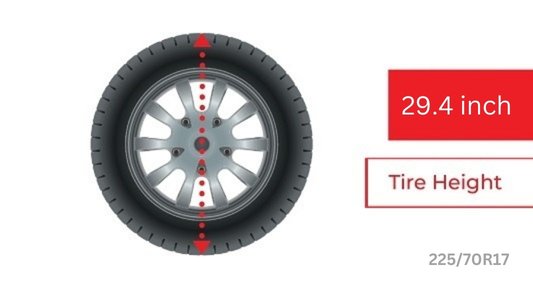

How Tall Is A 225/70R17 Tire?

The Tire Height of the 225/70R17 tire size is 29.4 inches or 746.8 millimeters. This measurement is also known as the tire’s overall diameter. The height can significantly influence the ride quality and vehicle stability, with taller tires generally providing better stability on rough terrains.

What Is the 225/70R17 Width In Inches?

The tread width of the 225/70R17 tire size is 8.9 inches or 225 millimeters. This is the measurement from one sidewall to the other and represents the part of the tire that comes into contact with the road. A broader tire can increase the car’s grip and handling, but it may also affect fuel efficiency.

What Is the 225/70R17 Sidewall Height?

The 225/70R17 tire’s sidewall height is 6.2 inches or 157.5 millimeters. The sidewall height, also referred to as the aspect ratio, is the percentage of the tread width. Tires with a higher aspect ratio have larger sidewalls, contributing to a smoother and more comfortable ride.

What Is the 225/70R17 Tire Circumference?

The 225/70R17 tire’s circumference is approximately 92.4 inches or 2346.1 millimeters. This measurement of the total distance around the tire can influence the speedometer readings. A greater circumference would mean the tire covers more ground in one revolution.

What Is the 225/70R17 Revolutions Per Mile?

For the 225/70R17 tire size, there are approximately 686 revolutions per mile or 426 revolutions per kilometer. This figure shows how many times the tire will rotate in one mile and can affect the wear rate and ride comfort.

What Is the 225/70R17 Rims Size?

The 225/70R17 tire size, the rim diameter is 17 inches or 432 millimeters. The tire is approved to be mounted on rims with widths between 6.0 to 7.5 inches (152.4 to 190.5 millimeters). Proper fitment onto the rim is crucial to the overall tire performance.

Fitment Guide
Different vehicles require different tire sizes based on their specifications. 225/70R17 is commonly used in mid-size sedans, SUVs, and light-duty pickup trucks. Always refer to your vehicle’s owner manual or consult a tire professional to ensure proper fitment.

Brand Name Model
DODGE Ram 1500 (1994 – 2001), Ram 3500 Van (1994 – 2003)
TOYOTA Hilux (2011 – 2023), Hilux Revo (2015 – 2020), Land Cruiser (2003 – 2009), Land Cruiser Prado (2002 – 2009)

Replacement Tire Size
Replacement tires have to be within 3% of the total diameter of the original tires to ensure proper fitment and maintain vehicle performance. Slight variations can affect the vehicle’s traction control, anti-lock brakes, and speedometer reading.

Tire Size Overall Diameter Difference
245/60R17 28.6″ (726 mm) -2.9%
165/90R17 28.7″ (730 mm) -2.4%
215/70R17 28.9″ (734 mm) -1.9%
275/55R17 28.9″ (734 mm) -1.9%
235/65R17 29.1″ (738 mm) -1.3%
255/60R17 29.1″ (738 mm) -1.3%
175/90R17 29.4″ (748 mm) 0%
265/60R17 29.5″ (750 mm) 0.3%
245/65R17 29.5″ (750 mm) 0.3%
235/70R17 30″ (762 mm) 1.9%
275/60R17 30″ (762 mm) 1.9%
255/65R17 30.1″ (764 mm) 2.1%
225/75R17 30.3″ (770 mm) 2.9%

Our Observation
The 225/70R17 tire size offers a blend of durability, comfort, and stability. Its versatile fitment across multiple vehicle types makes it a popular choice among consumers. However, it’s essential to consider the specific driving conditions and vehicle requirements before choosing this tire size.

The above values are the key dimensions for the 225/70R17 tire size. These specifications are standardized for this size but may vary slightly among tire manufacturers.
